Enable alerts using DIO (solved)

[demetrio]

Hello to all ! Using an ESP8266 i made a presence detector that send 1 over serial port if one of the family cellular is detect and send 0 otherwise.
It's possible to use this logic to enable camera alerts only if blue iris detect 0 on the serial port ?
Thank you !



[TonyR]

So BI's built-in ability to use geo-fencing of cellular phones to arm/disarm BI or bring up specific profiles based on which user's phones are in or out of the geo-fence area will not meet your needs?



[demetrio]

Dear TonyR, I know about BI geofencing feature but we are 4 so we need to buy the same copy of blue iris app (40 Euros in total). Instead with a bunch of euros I have the same functionality with no extra costs in case of scaling.

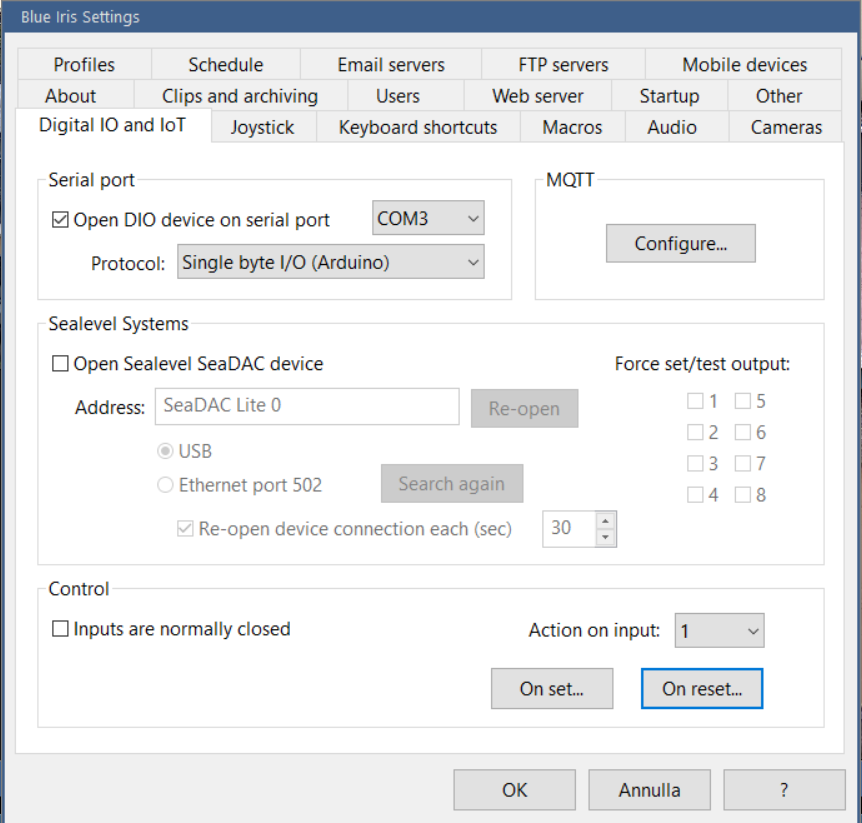

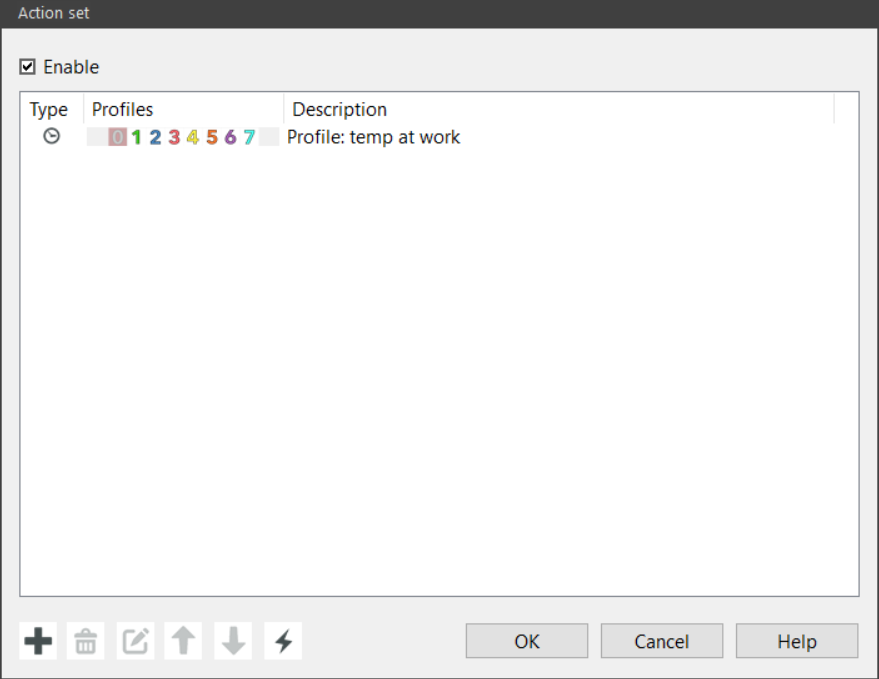

However I found the solution to my problem. I made two profiles, one called at work with alerts enabled and one called at home with alerts disabled. In the Blue Iris Settings->Digital IO and Iot I used the control parameters On set and On reset setting the necessary rules to switch between the two.



[xjust]

care to share your code on the esp ? im interested too
thanks



[catcamstar]

I just started with ESP32's, and there are dozens of sample wifi-scanning/detection scripts available which contain code to build whatever you want (eg to scan your wifi (eg ESP-EOS/ESP32-WiFi-Sniffer)

What I personally would do:

• opt for an AsyncWebserver (which simply shows your devices with a 1 (present) and a 0 (not present)
• let the bi machine curl that website every 1-5 minute, and parse the output
