BI6 new built in AI beta 6.0.1.0

Tinman

Known around here
Nov 2, 2015
1,529
2,060
USA
Thought I would start a new thread so not to plug up the bot thread. I am getting these results running these settings on my demo.

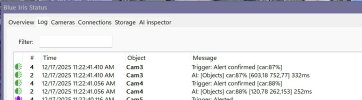

Screenshot 2025-12-17 112410.jpgScreenshot 2025-12-17 112521.jpg

Thought I would try it quick on my main BI, after many attempts and restarts, I never could get it to work with my GPU Nvidia RTX A2000, it just would always return nothing found. I then just tried "NO GPU" and I did manage to get it to detect, but terrible time.

NO GPU:

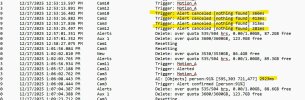

Screenshot 2025-12-17 132258.jpg

Back to 6.0.0.1 and using GPU:

Screenshot 2025-12-17 132907.jpg

Has anyone figured out what the alert post/payload needs to be to in this new version for @algertc’s alpr database app?

Has anyone figured out what the alert post/payload needs to be to in this new version for @algertc’s alpr database app?
The issue is the JSON format from v6.0.1, the api is just objects, not alpr. This is something that Ken will need to fix because @algertc’s alpr database app only recognizes the api alpr or @algertc’s needs to look for the label plate and use this for the plate.

v6.0.1
JSON:
LPR.20251217_211126Z.253663.3-5.dat

[
    {
        "api":"objects",
        "found":{
            "success":true,
            "error":null,
            "message":"",
            "predictions":[
                {
                    "category":"vehicle",
                    "label":"truck",
                    "confidence":0.802895486354828,
                    "x_min":5,
                    "x_max":1335,
                    "y_min":1,
                    "y_max":787,
                    "plate":"XMW6099"}
                ,
                {
                    "category":"vehicle",
                    "label":"XMW6099",
                    "confidence":0.964644551277161,
                    "x_min":1167,
                    "x_max":1277,
                    "y_min":504,
                    "y_max":578}
                ,
                {
                    "category":"vehicle",
                    "label":"car",
                    "confidence":0.787121057510376,
                    "x_min":966,
                    "x_max":1917,
                    "y_min":168,
                    "y_max":912,
                    "plate":"XMW6099"}
                ,
                {
                    "category":"vehicle",
                    "label":"XMW6099",
                    "confidence":0.95627498626709,
                    "x_min":1165,
                    "x_max":1275,
                    "y_min":502,
                    "y_max":580}
                ]
            ,
            "count":4,
            "moduleId":"",
            "executionProvider":"ONNXRunTime",
            "analysisRoundTripMs":1244}
        }
    ]

My ALPR
JSON:
T+300 msec  [22430 msec]

[
    {
        "api":"objects",
        "found":{
            "message":"Found car,
            car",
            "count":2,
            "predictions":[
                {
                    "label":"car",
                    "confidence":0.9540823,
                    "y_min":190,
                    "x_min":410,
                    "y_max":923,
                    "x_max":1918}
                ,
                {
                    "label":"car",
                    "confidence":0.8068814,
                    "y_min":1,
                    "x_min":2,
                    "y_max":770,
                    "x_max":1384}
                ]
            ,
            "inferenceDevice":"GPU:0",
            "inferenceMs":2124,
            "processMs":2124,
            "analysisRoundTripMs":6736,
            "success":true,
            "moduleName":"ObjectDetectionYOLO11Net",
            "moduleId":"ObjectDetectionYOLO11Net",
            "command":"detect",
            "requestId":"b5fd2c86-7beb-4f53-b532-b468a36f2d4c",
            "processedBy":"localhost",
            "timestampUTC":"Wed,
            17 Dec 2025 21:13:58 GMT"}
        }
    ,
    {
        "api":"alpr",
        "found":{
            "message":"Found 1 license plate(s): LP4634",
            "count":1,
            "predictions":[
                {
                    "confidence":0.9014773,
                    "is_day_plate":true,
                    "label":"LP4634",
                    "plate":"LP4634",
                    "x_min":563,
                    "y_min":474,
                    "x_max":706,
                    "y_max":580,
                    "top_plates":[
                        {
                            "plate":"LP74634",
                            "confidence":0.9014773}
                        ]
                    ,
                    "corners":[
                        [
                            589.8317,
                            494.9086]
                        ,
                        [
                            687.16003,
                            503.5963]
                        ,
                        [
                            681.8087,
                            557.60144]
                        ,
                        [
                            584.1287,
                            547.7939]
                        ]
                    ,
                    "track_id":4103,
                    "speed_mph":18.143211,
                    "tracking_frames":1}
                ]
            ,
            "inferenceDevice":"GPU:0",
            "inferenceMs":288,
            "processMs":506,
            "analysisRoundTripMs":526,
            "success":true,
            "moduleName":"ALPRYOLO11NET",
            "moduleId":"ALPRYOLO11NET",
            "command":"alpr",
            "requestId":"2ad0bb71-790a-48ff-b82c-458cc87f7d8c",
            "processedBy":"localhost",
            "timestampUTC":"Wed,
            17 Dec 2025 21:13:58 GMT"}
        }
    ]

Last edited:
